# AutoAttend Architecture

This repository provides production-ready Kubernetes configurations for deploying AutoAttend, a scalable facial recognition attendance tracking system. AutoAttend uses Milvus vector database for efficient face matching and supports real-time attendance monitoring via web interface.

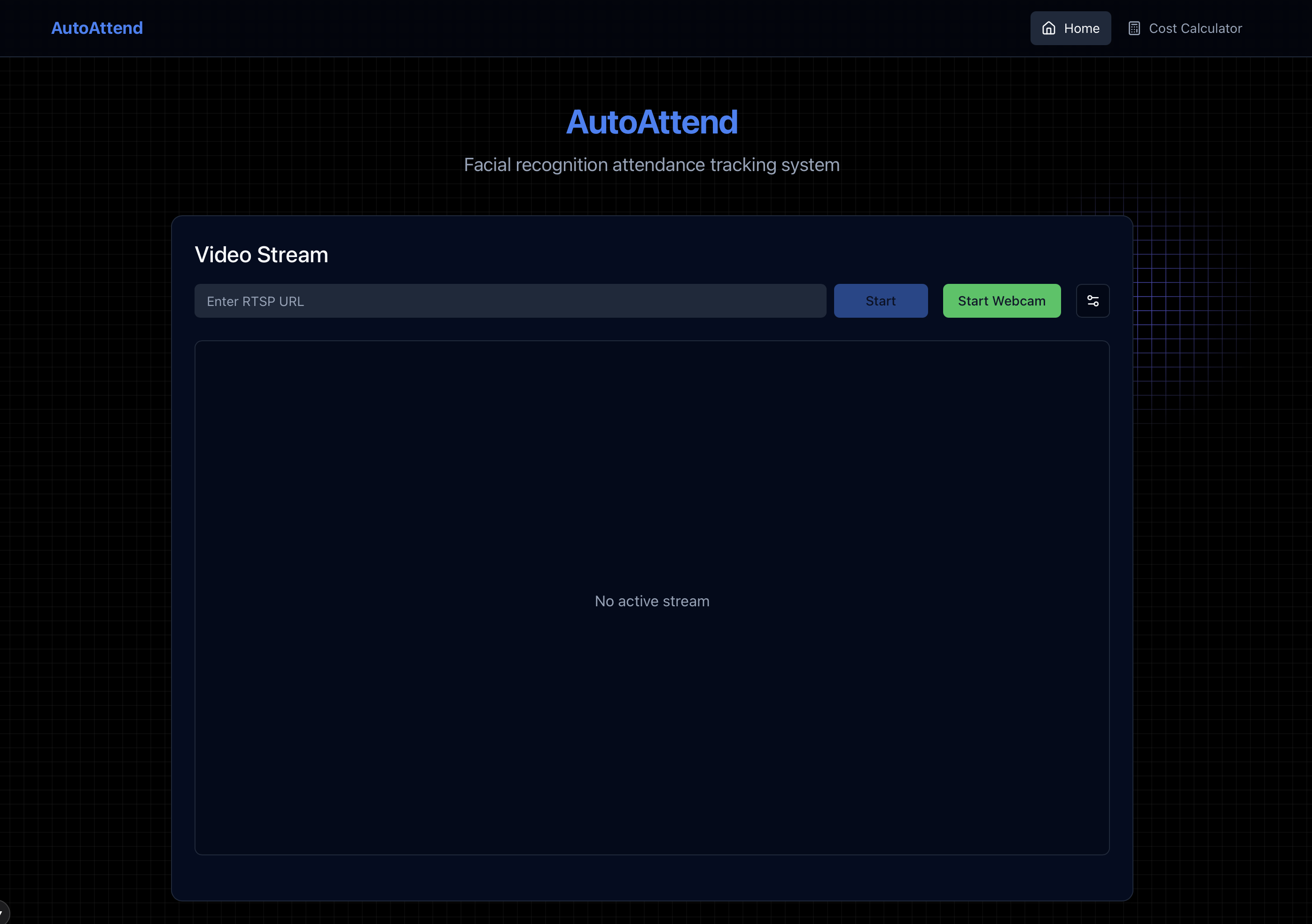

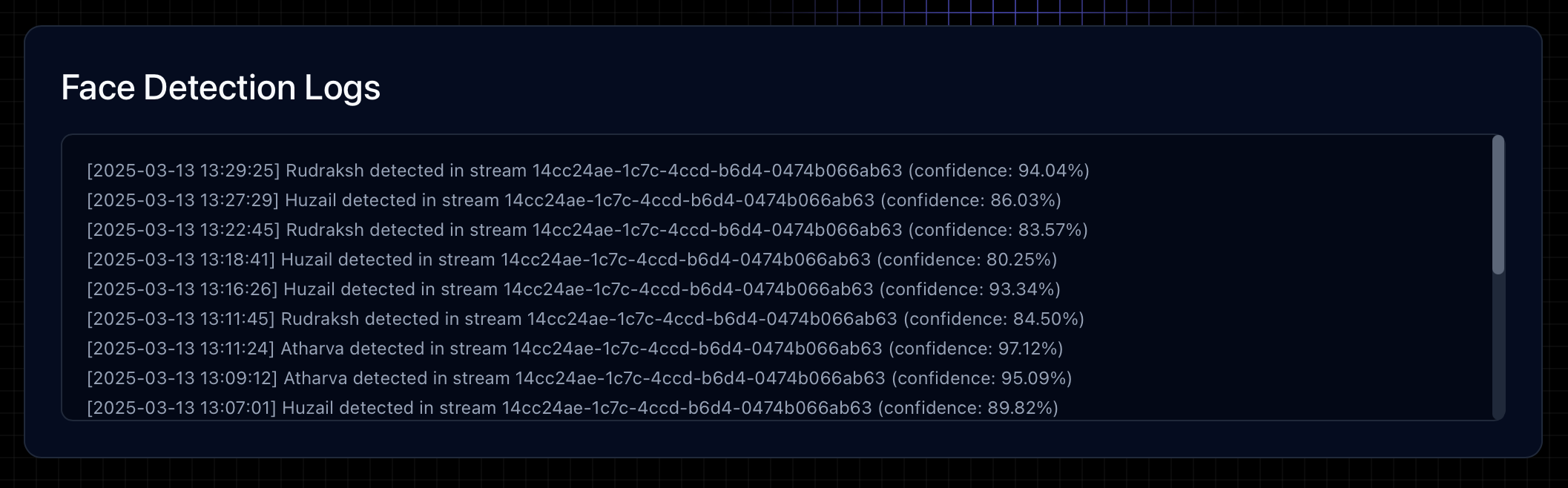

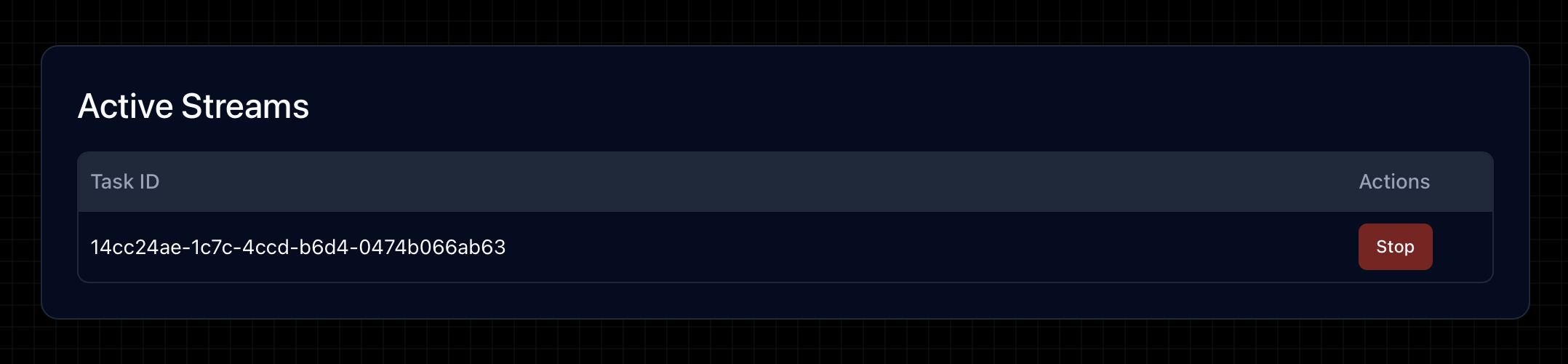

The system shows logs of detected features, allows downloading them and more for each stream. The system also allows turning on/off streams.

Note

For installation, we send you the images for frontend and backend and template environment files.
We also send you a template kubernetes configuration that you can tweak according to your needs.
If you want to start small, we also send you a production grade docker compose file.

# System Architecture

AutoAttend is architected as a cloud-native application following microservices patterns and best practices for Kubernetes deployments.

flowchart TD
    subgraph External ["External Traffic"]
        User["User/Browser"]
        Internet["Internet"]
    end

    subgraph Kubernetes ["Kubernetes Cluster"]
        subgraph IngressLayer ["Ingress Layer"]
            Ingress["Ingress Controller"]
            style Ingress fill:#326ce5,color:white
            TLS["TLS Termination"]
            style TLS fill:#1C662F,color:white
        end

        subgraph FrontendNS ["Frontend Namespace"]
            style FrontendNS fill:#e3f2fd,stroke:#1565c0,stroke-width:2px
            FrontendSvc["Frontend Service"]
            FrontendDeploy["Next.js Pods"]
            FrontendSvc --- FrontendDeploy
        end

        subgraph BackendNS ["Backend Namespace"]
            style BackendNS fill:#e8f5e9,stroke:#2e7d32,stroke-width:2px
            BackendSvc["API Service"]
            WebSocketSvc["WebSocket Service"]
            BackendDeploy["FastAPI + Uvicorn Pods"]
            HPA["Horizontal Pod Autoscaler"]
            style HPA fill:#FFB000,color:black

            CeleryWorkers["Celery Workers"]

            BackendSvc --- BackendDeploy
            WebSocketSvc --- BackendDeploy
            HPA -.- BackendDeploy
            HPA -.- CeleryWorkers
        end

        subgraph DataNS ["Data Namespace"]
            style DataNS fill:#fff3e0,stroke:#e65100,stroke-width:2px
            RedisSvc["Redis Cache StatefulSet"]
            RabbitMQSvc["RabbitMQ StatefulSet"]
            MilvusSvc["Milvus Vector DB StatefulSet"]

            RedisPVC["Redis PVC"]
            RabbitMQPVC["RabbitMQ PVC"]
            MilvusPVC["Milvus PVC"]

            style RedisPVC fill:#FFE0B2,stroke:#E65100,stroke-width:1px,stroke-dasharray: 5 5
            style RabbitMQPVC fill:#FFE0B2,stroke:#E65100,stroke-width:1px,stroke-dasharray: 5 5
            style MilvusPVC fill:#FFE0B2,stroke:#E65100,stroke-width:1px,stroke-dasharray: 5 5

            RedisSvc --- RedisPVC
            RabbitMQSvc --- RabbitMQPVC
            MilvusSvc --- MilvusPVC
        end

        subgraph MLNS ["ML Inference Namespace"]
            style MLNS fill:#f3e5f5,stroke:#7b1fa2,stroke-width:2px
            MLSvc["ML Inference Service"]
            MLPods["Face Recognition Pods"]
            MLSvc --- MLPods
        end
    end

    %% External connections
    Internet --> Ingress
    User --> Internet

    %% Ingress Layer connections
    Ingress -- "HTTPS" --> TLS
    TLS --> FrontendSvc
    TLS --> BackendSvc
    TLS --> WebSocketSvc

    %% Service connections
    FrontendDeploy -- "REST API requests" --> BackendSvc
    FrontendDeploy -- "WebSocket connections" --> WebSocketSvc

    %% Backend connections
    BackendDeploy -- "Cache operations" --> RedisSvc
    BackendDeploy -- "Task queue" --> RabbitMQSvc
    BackendDeploy -- "Face DB queries" --> MilvusSvc

    %% Celery and ML connections
    RabbitMQSvc -- "Task consume" --> CeleryWorkers
    CeleryWorkers -- "Inference requests" --> MLSvc
    MLPods -- "Vector matching" --> MilvusSvc

    %% Styling
    class User,Internet external
    class RedisSvc,RabbitMQSvc,MilvusSvc infra
    class BackendDeploy,MLPods,CeleryWorkers emphasis
    classDef emphasis fill:#C8E6C9,stroke:#00796B,stroke-width:1px
    classDef external fill:#f9f,stroke:#333,stroke-width:2px
    classDef infra fill:#bbf,stroke:#33c,stroke-width:2px

    %% Legend
    subgraph Legend ["Legend"]
        L1["Application Component"]
        L2["Infrastructure Component"]
        L3["External Component"]
        L4["Namespace Boundary"]
        L5["Persistent Volume"]

        style L1 fill:#C8E6C9,stroke:#00796B,stroke-width:1px
        style L2 fill:#bbf,stroke:#33c,stroke-width:2px
        style L3 fill:#f9f,stroke:#333,stroke-width:2px
        style L4 fill:#EEEEEE,stroke:#555555,stroke-width:2px,stroke-dasharray: 5 5
        style L5 fill:#FFE0B2,stroke:#E65100,stroke-width:1px,stroke-dasharray: 5 5
    end

# Key Components

# Namespaces

The system uses Kubernetes namespaces to isolate components:

Namespace	Description
`frontend`	User interface components
`backend`	API services and application logic
`data`	Databases and message brokers
`ml-inference`	ML processing services

# Component Breakdown

Component	Technology	Purpose
Frontend	Next.js	User interface for attendance tracking
Backend API	FastAPI	RESTful API endpoints for system interaction
WebSocket	FastAPI/WebSockets	Real-time communication channel
Celery Workers	Celery	Asynchronous task processing
Redis	Redis	Caching and Celery result backend
RabbitMQ	RabbitMQ	Message brokering for task queue
ML Inference	Custom	Face detection and recognition processing
Milvus	Milvus Vector DB	Storage and querying of face embeddings

# Prerequisites

Before deploying, ensure you have:

Kubernetes cluster (1.18+)
kubectl CLI tool configured to connect to your cluster
Docker and container registry access
Domain name (for production deployment)
TLS certificates (for production deployment)

# Configuration

# Environment Variables

The system is configured using environment variables. Copy the .env.example file to .env for production deployment:

# OR
cp .env.example .env  # For production deployment

Key configuration parameters:

Variable	Description	Example
`DOMAIN`	Primary domain name	`attendance.example.com`
`API_DOMAIN`	API subdomain	`api.attendance.example.com`
`WS_DOMAIN`	WebSocket subdomain	`ws.attendance.example.com`
`REDIS_PASSWORD`	Redis password	`strong-random-password`
`RABBITMQ_USER`	RabbitMQ username	`user`
`RABBITMQ_PASSWORD`	RabbitMQ password	`strong-random-password`
`DOCKER_USERNAME`	Docker registry username	`username`
`DOCKER_PASSWORD`	Docker registry password	`password`

# Deployment

# Production Deployment

For production environments:

./deploy-prod.sh

This script:

Creates production-grade configurations
Sets up TLS/SSL with cert-manager
Configures ingress rules
Applies resource limits and auto-scaling
Sets up network policies for security

# Security Features

The deployment implements several security best practices:

Namespace isolation with network policies
Non-root container execution
Resource quotas and limits
TLS/SSL encryption for all traffic
Secret management for sensitive information
RBAC for service accounts
Network policies restricting pod-to-pod communication

# Network Policies

Network policies enforce strict rules for pod-to-pod communication, implementing the principle of least privilege to minimize the attack surface.

flowchart LR
    subgraph "Ingress-Nginx Namespace"
        style ingress-nginx fill:#e8eaf6,stroke:#3949ab,stroke-width:2px
        Ingress[("Ingress<br>Controller")]
        style Ingress fill:#5c6bc0,color:white
    end

    subgraph "Frontend Namespace"
        style frontend fill:#e3f2fd,stroke:#1565c0,stroke-width:2px
        FrontendPods[("Frontend<br>Pods")]
        FrontendNetPol["Network Policy<br>frontend-policy"]
        style FrontendNetPol fill:#bbdefb,stroke:#1565c0,stroke-width:1px,stroke-dasharray: 5 5

        FrontendNetPol -.- FrontendPods
    end

    subgraph "Backend Namespace"
        style backend fill:#e8f5e9,stroke:#2e7d32,stroke-width:2px
        BackendPods[("Backend<br>Pods")]
        CeleryWorkers[("Celery<br>Workers")]
        BackendNetPol["Network Policy<br>backend-policy"]
        style BackendNetPol fill:#c8e6c9,stroke:#2e7d32,stroke-width:1px,stroke-dasharray: 5 5

        BackendNetPol -.- BackendPods
        BackendNetPol -.- CeleryWorkers
    end

    subgraph "Data Namespace"
        style data fill:#fff3e0,stroke:#e65100,stroke-width:2px
        Redis[("Redis<br>Cache")]
        RabbitMQ[("RabbitMQ")]
        Milvus[("Milvus<br>Vector DB")]
        RedisNetPol["Network Policy<br>redis-policy"]
        RabbitNetPol["Network Policy<br>rabbitmq-policy"]

        style RedisNetPol fill:#ffe0b2,stroke:#e65100,stroke-width:1px,stroke-dasharray: 5 5
        style RabbitNetPol fill:#ffe0b2,stroke:#e65100,stroke-width:1px,stroke-dasharray: 5 5

        RedisNetPol -.- Redis
        RabbitNetPol -.- RabbitMQ
    end

    subgraph "ML Inference Namespace"
        style ml-inference fill:#f3e5f5,stroke:#7b1fa2,stroke-width:2px
        MLPods[("ML Inference<br>Pods")]
        MLNetPol["Network Policy<br>ml-inference-policy"]
        style MLNetPol fill:#e1bee7,stroke:#7b1fa2,stroke-width:1px,stroke-dasharray: 5 5

        MLNetPol -.- MLPods
    end

    %% Allowed network flows with detailed protocol info
    Ingress -->|"HTTPS (443)"| FrontendPods
    Ingress -->|"HTTPS (443)"| BackendPods

    FrontendPods -->|"HTTP (80)<br>API Calls"| BackendPods
    BackendPods -->|"TCP (6379)<br>Cache Operations"| Redis
    BackendPods -->|"AMQP (5672)<br>Task Queue"| RabbitMQ
    BackendPods -->|"TCP (19530)<br>Vector Search"| Milvus
    CeleryWorkers -->|"TCP (19530)<br>Vector Search"| Milvus
    CeleryWorkers -->|"gRPC (50055)<br>ML Requests"| MLPods

    %% Denied connections (with red dashed lines)
    FrontendPods -.-x Redis
    FrontendPods -.-x RabbitMQ
    FrontendPods -.-x Milvus
    FrontendPods -.-x MLPods
    MLPods -.-x Redis

    %% Style for denied connections
    linkStyle 8,9,10,11,12 stroke:red,stroke-width:1.5,stroke-dasharray:3 3;

    %% Legend
    subgraph Legend["Network Policy Legend"]
        AllowedFlow["Allowed Traffic<br>Flow"]
        DeniedFlow["Explicitly Denied<br>Traffic Flow"]
        NetworkPolicy["Network Policy"]

        style AllowedFlow fill:#ffffff,stroke:#000000
        style DeniedFlow fill:#ffffff,stroke:red,stroke-dasharray:3 3
        style NetworkPolicy fill:#ffffff,stroke:#000000,stroke-dasharray: 5 5
    end

# Detailed Network Policy Configuration

Each namespace has one or more network policies that restrict pod-to-pod communication:

classDiagram
    class FrontendPolicy {
        +Namespace: frontend
        +PodSelector: app=frontend
        +Ingress: from ingress-nginx namespace
        +Ingress: from kubelet health checks
        +Egress: to backend namespace on port 80
    }

    class BackendPolicy {
        +Namespace: backend
        +PodSelector: app=backend
        +Ingress: from frontend namespace
        +Ingress: from ingress-nginx namespace
        +Egress: to data namespace (Redis, RabbitMQ, Milvus)
        +Egress: to ML inference namespace
    }

    class RedisPolicy {
        +Namespace: data
        +PodSelector: app=redis
        +Ingress: from backend namespace on port 6379
    }

    class RabbitMQPolicy {
        +Namespace: data
        +PodSelector: app=rabbitmq
        +Ingress: from backend namespace on port 5672
    }

    class MLPolicy {
        +Namespace: ml-inference
        +PodSelector: app=ml-inference
        +Ingress: from backend namespace
        +Egress: to data namespace (Milvus)
    }

    FrontendPolicy --> BackendPolicy: Allows traffic to
    BackendPolicy --> RedisPolicy: Allows traffic to
    BackendPolicy --> RabbitMQPolicy: Allows traffic to
    BackendPolicy --> MLPolicy: Allows traffic to
    MLPolicy --> RedisPolicy: Denied

# Deployment Process

The deployment process follows a structured approach to ensure consistency and reliability in both development and production environments.

flowchart TB
    Start(["Start Deployment"]) --> EnvConfig["Configure Environment Variables<br>.env.local or .env"]

    EnvConfig --> DeployDecision{"Deployment<br>Environment?"}
    DeployDecision -->|"Development"| LocalDeploy["./deploy-local.sh"]
    DeployDecision -->|"Production"| ProdDeploy["./deploy-prod.sh"]

    subgraph Local["Local Deployment Process"]
        LocalDeploy --> CreateLocalNS["Create Namespaces"]
        CreateLocalNS --> CreateLocalStorage["Setup Local Storage Class"]
        CreateLocalStorage --> CreateLocalSecrets["Create Development Secrets"]
        CreateLocalSecrets --> DeployLocalData["Deploy Data Services<br>(Redis, RabbitMQ)"]
        DeployLocalData --> DeployLocalBackend["Deploy Backend Services"]
        DeployLocalBackend --> DeployLocalFrontend["Deploy Frontend"]
        DeployLocalFrontend --> SetupPortForward["Setup Port Forwarding<br>for Local Access"]
    end

    subgraph Production["Production Deployment Process"]
        ProdDeploy --> CreateProdNS["Create Namespaces"]
        CreateProdNS --> CreateProdStorage["Setup Cloud-Provider<br>Storage Class"]
        CreateProdStorage --> CreateProdSecrets["Create Production Secrets<br>with Strict Permissions"]
        CreateProdSecrets --> DeployNetPolicies["Deploy Network Policies"]
        DeployNetPolicies --> DeployProdData["Deploy Data Services<br>with Production Settings"]
        DeployProdData --> DeployProdBackend["Deploy Backend Services<br>with Autoscaling"]
        DeployProdBackend --> DeployProdFrontend["Deploy Frontend<br>with Multiple Replicas"]
        DeployProdFrontend --> SetupIngress["Deploy & Configure<br>Ingress with TLS"]
    end

    SetupPortForward --> LocalComplete(["Local Deployment<br>Complete"])
    SetupIngress --> ConfigureDNS["Configure DNS"]
    ConfigureDNS --> TestAccess["Test External Access"]
    TestAccess --> ProdComplete(["Production Deployment<br>Complete"])

    classDef process fill:#bbdefb,stroke:#1565c0,color:#000000;
    classDef decision fill:#ffecb3,stroke:#ffa000,color:#000000;
    classDef endpoint fill:#c8e6c9,stroke:#2e7d32,color:#000000;

    class Start,LocalComplete,ProdComplete endpoint;
    class EnvConfig,LocalDeploy,ProdDeploy,CreateLocalNS,CreateLocalStorage,CreateLocalSecrets,DeployLocalData,DeployLocalBackend,DeployLocalFrontend,SetupPortForward,CreateProdNS,CreateProdStorage,CreateProdSecrets,DeployNetPolicies,DeployProdData,DeployProdBackend,DeployProdFrontend,SetupIngress,ConfigureDNS,TestAccess process;
    class DeployDecision decision;

# Maintenance Operations

# Scaling and Reliability

The system implements both manual scaling and Horizontal Pod Autoscaling (HPA) for dynamic resource adjustment based on workload.

flowchart TB
    subgraph "Scaling Operations"
        ManualScale["Manual Scaling<br>kubectl scale deployment"] --> ScaleFrontend["Scale Frontend<br>kubectl scale deployment frontend<br>-n frontend --replicas=5"]
        ManualScale --> ScaleBackend["Scale Backend<br>kubectl scale deployment backend<br>-n backend --replicas=8"]
        ManualScale --> ScaleCelery["Scale Celery Workers<br>kubectl scale deployment celery-worker<br>-n backend --replicas=12"]

        HPA["Horizontal Pod<br>Autoscaler"] --> BackendHPA["Backend HPA<br>4-10 replicas<br>70% CPU target<br>80% Memory target"]
        HPA --> CeleryHPA["Celery HPA<br>4-20 replicas<br>70% CPU target"]
    end

    subgraph "High Availability"
        PodAntiAffinity["Pod Anti-Affinity<br>Rules"]
        PodDisruptionBudget["Pod Disruption<br>Budget (PDB)"]

        PodAntiAffinity --> DistributeFrontend["Distribute Frontend Pods<br>Across Nodes"]
        PodAntiAffinity --> DistributeBackend["Distribute Backend Pods<br>Across Nodes"]

        PodDisruptionBudget --> FrontendPDB["Frontend PDB<br>minAvailable: 2"]
        PodDisruptionBudget --> BackendPDB["Backend PDB<br>minAvailable: 3"]
        PodDisruptionBudget --> DataPDB["Data Services PDB<br>minAvailable: 1"]
    end

    subgraph "Resource Management"
        ResourceRequests["Resource Requests<br>& Limits"]
        ResourceQuotas["Namespace<br>Resource Quotas"]

        ResourceRequests --> BackendResources["Backend<br>req: 500m CPU, 512Mi Memory<br>limit: 1000m CPU, 1Gi Memory"]
        ResourceRequests --> FrontendResources["Frontend<br>req: 200m CPU, 256Mi Memory<br>limit: 500m CPU, 512Mi Memory"]
        ResourceRequests --> CeleryResources["Celery Worker<br>req: 500m CPU, 1Gi Memory<br>limit: 2000m CPU, 2Gi Memory"]
        ResourceRequests --> MLResources["ML Inference<br>req: 1000m CPU, 2Gi Memory<br>limit: 4000m CPU, 4Gi Memory"]

        ResourceQuotas --> FrontendQuota["Frontend Namespace<br>max: 4000m CPU, 8Gi Memory"]
        ResourceQuotas --> BackendQuota["Backend Namespace<br>max: 16000m CPU, 32Gi Memory"]
        ResourceQuotas --> DataQuota["Data Namespace<br>max: 8000m CPU, 16Gi Memory"]
    end

    style ManualScale fill:#bbdefb,stroke:#1565c0,color:#000000;
    style HPA fill:#bbdefb,stroke:#1565c0,color:#000000;
    style PodAntiAffinity fill:#c8e6c9,stroke:#2e7d32,color:#000000;
    style PodDisruptionBudget fill:#c8e6c9,stroke:#2e7d32,color:#000000;
    style ResourceRequests fill:#ffe0b2,stroke:#e65100,color:#000000;
    style ResourceQuotas fill:#ffe0b2,stroke:#e65100,color:#000000;

# CI/CD and Update Process

The system implements a robust CI/CD pipeline and structured update process to ensure reliable deployments.

flowchart TD
    subgraph "CI/CD Pipeline"
        direction TB
        CodeChange["Code Change<br>Committed"] --> CITrigger["CI Pipeline<br>Triggered"]
        CITrigger --> BuildTest["Build & Run<br>Automated Tests"]
        BuildTest -->|"Tests Pass"| BuildImages["Build Container<br>Images"]
        BuildTest -->|"Tests Fail"| FailNotify["Notify<br>Developers"]

        BuildImages --> TagImages["Tag Images<br>with Version"]
        TagImages --> PushRegistry["Push to<br>Container Registry"]

        PushRegistry --> DeployDev["Deploy to<br>Development Environment"]
        DeployDev --> IntegrationTests["Run Integration<br>Tests"]
        IntegrationTests -->|"Tests Pass"| ApproveProduction["Approve for<br>Production"]
        IntegrationTests -->|"Tests Fail"| RollbackDev["Rollback<br>Development"]
    end

    subgraph "Update Process"
        direction TB
        ApproveProduction -.-> UpdateImages["Update Image Tags<br>in Deployment Files"]

        UpdateImages --> UpdateBackend["Update Backend<br>./rebuild-backend-image.sh<br>./redeploy-backend.sh"]
        UpdateImages --> UpdateFrontend["Update Frontend<br>./rebuild-frontend-image.sh<br>./redeploy-frontend.sh"]

        UpdateBackend --> VerifyBackend["Verify Backend<br>Deployment"]
        UpdateFrontend --> VerifyFrontend["Verify Frontend<br>Deployment"]

        VerifyBackend --> MonitorHealth["Monitor System<br>Health"]
        VerifyFrontend --> MonitorHealth

        MonitorHealth -->|"Issues Detected"| Rollback["Rollback Deployment<br>kubectl rollout undo"]
        MonitorHealth -->|"Stable"| CompleteUpdate["Update Complete"]

        Rollback --> PostMortem["Conduct Post-Mortem<br>Analysis"]
    end

    style CodeChange fill:#bbdefb,stroke:#1565c0,color:black;
    style CITrigger fill:#bbdefb,stroke:#1565c0,color:black;
    style BuildTest fill:#bbdefb,stroke:#1565c0,color:black;
    style BuildImages fill:#bbdefb,stroke:#1565c0,color:black;
    style TagImages fill:#bbdefb,stroke:#1565c0,color:black;
    style PushRegistry fill:#bbdefb,stroke:#1565c0,color:black;
    style DeployDev fill:#bbdefb,stroke:#1565c0,color:black;
    style IntegrationTests fill:#bbdefb,stroke:#1565c0,color:black;
    style ApproveProduction fill:#bbdefb,stroke:#1565c0,color:black;

    style UpdateImages fill:#c8e6c9,stroke:#2e7d32,color:black;
    style UpdateBackend fill:#c8e6c9,stroke:#2e7d32,color:black;
    style UpdateFrontend fill:#c8e6c9,stroke:#2e7d32,color:black;
    style VerifyBackend fill:#c8e6c9,stroke:#2e7d32,color:black;
    style VerifyFrontend fill:#c8e6c9,stroke:#2e7d32,color:black;
    style MonitorHealth fill:#c8e6c9,stroke:#2e7d32,color:black;
    style CompleteUpdate fill:#c8e6c9,stroke:#2e7d32,color:black;

    style FailNotify fill:#ffcdd2,stroke:#c62828,color:black;
    style RollbackDev fill:#ffcdd2,stroke:#c62828,color:black;
    style Rollback fill:#ffcdd2,stroke:#c62828,color:black;
    style PostMortem fill:#ffcdd2,stroke:#c62828,color:black;

# Monitoring and Observability

The system implements comprehensive monitoring and observability for real-time system health tracking.

flowchart TB
    subgraph "Monitoring Components"
        Prometheus["Prometheus<br>Metrics Collection"]
        Grafana["Grafana<br>Dashboards"]
        AlertManager["Alert Manager<br>Notifications"]
        Loki["Loki<br>Log Aggregation"]

        Prometheus --> Grafana
        Prometheus --> AlertManager
        Loki --> Grafana
    end

    subgraph "System Metrics"
        NodeMetrics["Node Metrics<br>CPU, Memory, Disk, Network"]
        PodMetrics["Pod Metrics<br>CPU, Memory, Restarts"]
        AppMetrics["Application Metrics<br>Request Rate, Latency, Errors"]
        DBMetrics["Database Metrics<br>Connections, Query Performance"]

        NodeExporter["Node Exporter"] --> NodeMetrics
        cAdvisor["cAdvisor"] --> PodMetrics
        ServiceMonitor["Service Monitor"] --> AppMetrics
        DBExporter["Database Exporter"] --> DBMetrics

        NodeMetrics --> Prometheus
        PodMetrics --> Prometheus
        AppMetrics --> Prometheus
        DBMetrics --> Prometheus
    end

    subgraph "Log Collection"
        AppLogs["Application Logs"]
        K8sLogs["Kubernetes Events"]
        IngressLogs["Ingress Controller Logs"]

        Fluentbit["Fluent Bit"] --> AppLogs
        Fluentbit --> K8sLogs
        Fluentbit --> IngressLogs

        AppLogs --> Loki
        K8sLogs --> Loki
        IngressLogs --> Loki
    end

    subgraph "Health Checks"
        LivenessProbes["Liveness Probes<br>Is the container running?"]
        ReadinessProbes["Readiness Probes<br>Is the service ready to accept traffic?"]
        StartupProbes["Startup Probes<br>Has the application started?"]

        LivenessProbes --> KubeAPI["Kubernetes API"]
        ReadinessProbes --> KubeAPI
        StartupProbes --> KubeAPI
    end

    subgraph "Alerting"
        HighCPU["High CPU Usage"]
        HighMemory["High Memory Usage"]
        PodCrash["Pod Crash"]
        HighLatency["High API Latency"]
        ErrorRate["High Error Rate"]

        HighCPU --> AlertManager
        HighMemory --> AlertManager
        PodCrash --> AlertManager
        HighLatency --> AlertManager
        ErrorRate --> AlertManager

        AlertManager --> Email["Email"]
        AlertManager --> Slack["Slack"]
        AlertManager --> PagerDuty["PagerDuty"]
    end

    style Prometheus fill:#bbdefb,stroke:#1565c0,color:black;
    style Grafana fill:#bbdefb,stroke:#1565c0,color:black;
    style AlertManager fill:#bbdefb,stroke:#1565c0,color:black;
    style Loki fill:#bbdefb,stroke:#1565c0,color:black;

    style NodeMetrics,PodMetrics,AppMetrics,DBMetrics fill:#c8e6c9,stroke:#2e7d32,color:black
    style NodeExporter,cAdvisor,ServiceMonitor,DBExporter fill:#e3f2fd,stroke:#1565c0,color:black
    style AppLogs,K8sLogs,IngressLogs fill:#e8f5e9,stroke:#2e7d32,color:black
    style LivenessProbes,ReadinessProbes,StartupProbes fill:#fff3e0,stroke:#e65100,color:black
    style HighCPU,HighMemory,PodCrash,HighLatency,ErrorRate fill:#ffcdd2,stroke:#c62828,color:black
    style Email,Slack,PagerDuty fill:#f3e5f5,stroke:#7b1fa2,color:black

# Health Checks and Monitoring Commands

# Check pod status
kubectl get pods --all-namespaces

# View logs
kubectl logs -f -n backend -l app=backend
kubectl logs -f -n frontend -l app=frontend

# Monitor resource usage
kubectl top pods --all-namespaces

# Face Recognition System

The system uses advanced facial recognition algorithms to track attendance:

Face Detection: Detects and isolates faces in camera feeds
Face Embedding: Converts facial features into vector representations
Vector Matching: Compares embeddings against stored profiles in Milvus
Attendance Recording: Records matches with timestamps in the database

# Milvus Configuration

The Milvus vector database is configured for efficient face embedding storage and retrieval:

# Example Milvus collection configuration
collection_name: face_embeddings
dimension: 512
index_type: IVF_FLAT
metric_type: L2

# Troubleshooting

# Common Issues

Issue	Solution
Pods in CrashLoopBackOff	Check logs: `kubectl logs -n <namespace> <pod-name>`
Database connection errors	Verify secrets and check data service health
Image pull errors	Check Docker registry credentials
Ingress not working	Verify ingress controller and DNS configuration

# Debugging Commands

# Check events
kubectl get events -n <namespace>

# Describe resource
kubectl describe pod <pod-name> -n <namespace>

# Port forward for direct access
kubectl port-forward -n <namespace> svc/<service> <local-port>:<service-port>

# Check logs with timestamps
kubectl logs -f -n <namespace> <pod-name> --timestamps

# Best Practices

Resource Management: Set appropriate requests and limits for all containers
Liveness/Readiness Probes: Implement for all services for better auto-healing
StatefulSets: Use for stateful services like databases
ConfigMaps/Secrets: Separate configuration from code
Rolling Updates: Use for zero-downtime deployments
Namespace Isolation: Keep components separated for better security
